Monday, June 13, 2011

Ldap error occured. ldap_add_sW: Object Class Violation

I am performing ADAMSync from an Active Directory domain to an LDS Instance. My AD Domain Partition is called DC=Domain,DC=Local. My LDS Instance also has the same distinguished name of DC=Domain,DC=Local. When Syncing the following error is experienced:

Processing Entry: Page 18, Frame 1, Entry 48, Count 1, USN 0
Processing source entry

Processing in-scope entry 08080633da0dfe4f8b46508f00f2708f.
Adding target object CN=JoeBlow,OU=Disabled accounts,OU=IS Users,OU=IS,DC=Domain,DC=Local.
Adding attributes: sourceobjectguid, sn, title, description, physicalDeliveryOfficeName, telephoneNumber, givenName, instanceType, department, company, objectSid, sAMAccountName, lastagedchange, objectclass,
Ldap error occured. ldap_add_sW: Object Class Violation.
Extended Info: 0000207D: UpdErr: DSID-0315121C, problem 6002 (OBJ_CLASS_VIOLATION), data 19
.
Ldap error occured. ldap_add_sW: Object Class Violation.
Extended Info: 0000207D: UpdErr: DSID-0315121C, problem 6002 (OBJ_CLASS_VIOLATION), data 19
.


************
************
************ A fatal error occured in the program while processing entry
************ GUID=08080633da0dfe4f8b46508f00f2708f
************ The error will be ignored at user request. Continuing...
************
************


Below I will explain how to resolve this. I am syncing all User Objects from Active Directory to userProxy objects in LDS. This is required for single sign on (SSO). userProxy objects forward authentication bind requests to domain controllers which process the authentication request, pass it back to LDS then to the client.

To understand this in more detail please read my following blog post on the userProxy class:

http://clintboessen.blogspot.com/2011/04/userproxy-class-and-adam-lds.html

Here is a copy of my XML configuration file I installed into ADAMSync:

<?xml version="1.0"?>
<doc>
<configuration>
<!-- Sync File Description -->
<description>ADAMSync Configuration</description>
<security-mode>object</security-mode>
<!-- source-ad-name = fqdn of the domain controller -->
<source-ad-name>domaincontroller.domain.local</source-ad-name>
<!-- source-ad-partition = root AD domain partition -->
<source-ad-partition>dc=domain,dc=local</source-ad-partition>
<!-- source-ad-account = use this to specify an account to connect to AD -->
<!-- if not used, the current user will be used -->
<source-ad-account>ldapquery</source-ad-account>
<account-domain>domain</account-domain>
<!-- target-dn = target ADAM OU -->
<target-dn>dc=domain,dc=local</target-dn>
<query>
<!-- base-dn = should be the root AD partition if you want all users -->
<base-dn>dc=domain,dc=local</base-dn>
<!-- object-filter = standard ldap query format, this will grab all users -->
<!-- need to review results to see if you should modify this filter -->
<object-filter>(objectCategory=person)</object-filter>
<attributes>
<!-- include=userproxy requires objectSID to link back to the AD account -->
<include>objectSID</include>
<include>givenName</include>
<include>sn</include>
<include>description</include>
<include>title</include>
<include>company</include>
<include>department</include>
<include>mail</include>
<include>physicalDeliveryOfficeName</include>
<include>telephoneNumber</include>
<include>sAMAccountName</include>
</attributes>

</query>
<!-- map for user-to-userproxy object types -->
<user-proxy>
<source-object-class>user</source-object-class>
<target-object-class>userProxy</target-object-class>
</user-proxy>

<schedule>
<aging>
<frequency>0</frequency>
<num-objects>0</num-objects>
</aging>
<schtasks-cmd></schtasks-cmd>
</schedule>
</configuration>
<synchronizer-state>
<dirsync-cookie></dirsync-cookie>
<status></status>
<authoritative-adam-instance></authoritative-adam-instance>
<configuration-file-guid></configuration-file-guid>
<last-sync-attempt-time></last-sync-attempt-time>
<last-sync-success-time></last-sync-success-time>
<last-sync-error-time></last-sync-error-time>
<last-sync-error-string></last-sync-error-string>
<consecutive-sync-failures></consecutive-sync-failures>
<user-credentials></user-credentials>
<runs-since-last-object-update></runs-since-last-object-update>
<runs-since-last-full-sync></runs-since-last-full-sync>
</synchronizer-state>
</doc>


Notice the bits in bold. These are the attribute I want to Sync. I am also syncing these attributes FROM a user object TO a userProxy object. Let's use the "Active Directory Schema" mmc snap-in to look at the LDS Instance schema. To understand how to use "Active Directory Schema" mmc snap-in to connect to an LDS Instance please read:

http://technet.microsoft.com/en-us/library/cc816707.aspx

Your also going to probably run into this problem when connecting to the LDS Instance:

http://clintboessen.blogspot.com/2011/06/lds-active-directory-schema-status.html

In this environment I imported the following schema extensions MS-UserProxy.ldf, MS-AdamSyncMetadata.ldf, MS-AdamSchemaW2K8.ldf to my LDS Instance. In my Active Directory Schema if I look at my userProxy class object attribute association I have the following attributes associated:

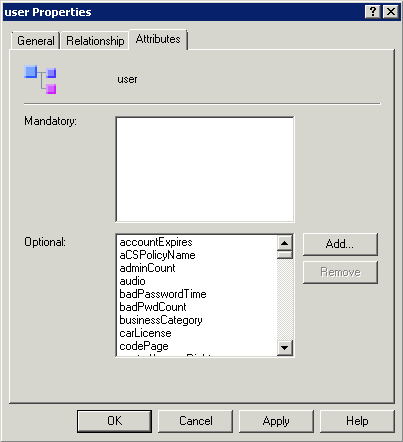

However in my user class object I have the following attributes associated:



Can you pick the problem yet? I have asked ADAMSync to sync the following attributes FROM user class in Active Directory TO userProxy:

<attributes>
<!-- include=userproxy requires objectSID to link back to the AD account -->
<include>objectSID</include>
<include>givenName</include>
<include>sn</include>
<include>description</include>
<include>title</include>
<include>company</include>
<include>department</include>
<include>mail</include>
<include>physicalDeliveryOfficeName</include>
<include>telephoneNumber</include>
<include>sAMAccountName</include>
</attributes>


userProxy does not have these attributes associated. After I added these attributes to the userProxy class object all was fixed:
